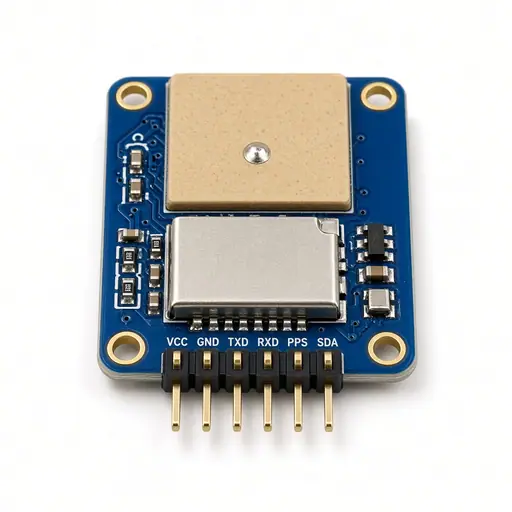

u-blox NEO-6M GPS Module
by u-blox / clone
SKU: PSA-CMP-GPS-NEO6M
No reviews yetTypical India street price
₹350–₹700
Latitude/longitude/speed for trackers and geography labs.
Interface: UART NMEA 9600
Get notified if we start selling this part
Concept
A GNSS receiver listens to satellites and prints NMEA sentences over UART.
A little theory
Needs sky view. Cold start minutes; backup battery helps warm start. 1 pulse-per-second on some boards. In the classroom, treat u-blox NEO-6M GPS Module as a intermediate part using UART NMEA 9600. Typical India street price is about ₹350–₹700. Always verify voltage and pin labels on your exact module — silk screens vary across clones. Start with a datasheet or trusted learn guide, power the part correctly, share GND with the MCU, and test with a simple blink/read sketch before building the full project. Measure voltages with a multimeter when something fails, and keep actuator current off the MCU regulator.
How it works in a project
TinyGPS++ on Serial1/SoftwareSerial; wait for fix (nmea $GPGGA quality > 0).
Classroom & project use
- School bus track demo
- Hiking logger
- Sundial lat lookup
Buying in India
Precautions
- Won’t lock indoors in a basement
- 3.3 V TX to ESP
Specifications
| Chip | NEO-6M |
| Baud | 9600 NMEA |
| Category | Communication Modules |
| Difficulty | Intermediate |
| Voltage | 3.3–5V (module LDO) |
| Interface | UART NMEA 9600 |
Pinout
VCC | GND | TX | RX (cross TX↔RX; common GND)
