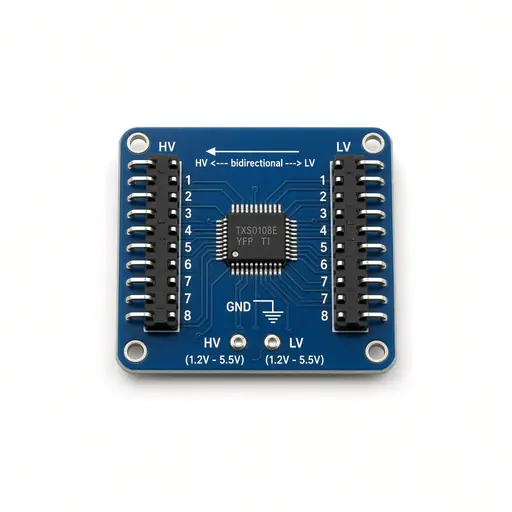

4-ch / 8-ch Bidirectional Logic Level Shifter
by Generic
SKU: PSA-CMP-LEVEL-SHIFTER
No reviews yetTypical India street price
₹25–₹80
Not currently sold by PSA — learn about the part below
Safely talk 5 V UNO ↔ 3.3 V ESP/Pi/sensors.
Interface: Open-drain MOSFET bidirectional
Voltage: 1.8–5V dual rails
Library reference — not in PSA stock yet
Get notified if we start selling this part
Concept
MOSFET + pull-ups let each side clamp to its own Vcc.
A little theory
BSS138 based. Works for I2C (open-drain) and slow SPI/UART. Not for 8 MHz SPI edge-rate sometimes.
How it works in a project
HV to 5 V, LV to 3.3 V, GND common, pass SDA/SCL or TX/RX.
Classroom & project use
- I2C OLED on mixed voltages
- Pi + 5 V sensors
- Connectors & Cables classroom demo
Buying in India
4-channel is enough for I2C + UART. Keep wires short.
Precautions
- Don’t swap HV/LV
- Need both supplies present
Specifications
| Channels | 4 or 8 |
| Type | Bidirectional MOSFET |
| Category | Connectors & Cables |
| Difficulty | Beginner |
| Voltage | 1.8–5V dual rails |
| Interface | Open-drain MOSFET bidirectional |
