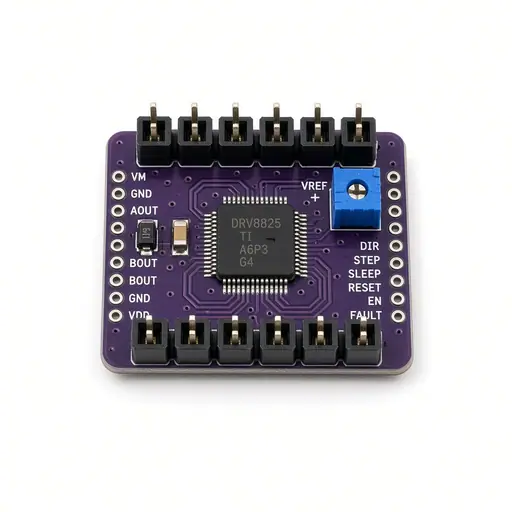

DRV8825 Stepper Driver Module
by TI / clone
SKU: PSA-CMP-DRV8825
No reviews yetTypical India street price
₹100–₹220
Higher-current stepper driver than A4988 for NEMA-17 CNC/plotters.
Interface: STEP/DIR + microstep
Get notified if we start selling this part
Concept
Current-chopping STEP/DIR driver with adjustable Vref — same idea as A4988 with more headroom.
A little theory
Set Vref from datasheet formula involving sense resistors. Microstep pins M0–M2. Heat sink required. Decay modes affect noise/heat. In the classroom, treat DRV8825 Stepper Driver Module as a intermediate part using STEP/DIR + microstep. Typical India street price is about ₹100–₹220. Always verify voltage and pin labels on your exact module — silk screens vary across clones. Start with a datasheet or trusted learn guide, power the part correctly, share GND with the MCU, and test with a simple blink/read sketch before building the full project. Measure voltages with a multimeter when something fails, and keep actuator current off the MCU regulator.
How it works in a project
Set current with DMM on Vref before connecting small motors. STEP/DIR from MCU; ENABLE low.
Classroom & project use
- NEMA 17 plotter
- Camera slider
- Mini CNC
Buying in India
Precautions
- Set current before first run
- Heat sink
- Don’t disconnect motor while powered
Specifications
| Current | up to ~2.5 A (cooled) |
| Interface | STEP/DIR |
| Chip | DRV8825 |
| Category | Drivers & Relays |
| Difficulty | Intermediate |
| Voltage | 3.3–5V logic; motor 8.2–45 V |
Pinout
VMOT GND | B2 B1 A1 A2 | STEP DIR EN | M0 M1 M2 | RST SLP FAULT
